Innovative Structure Arcum Tent with Curved Design
The Arcum Tent is a cutting-edge tent solution distinguished by its unique curved architecture,
blending aesthetic appeal with functional performance.
Arcum Tent Hot Sale Size Reference
The arcum tent’s unique arched frame, crafted from lightweight yet durable aluminum, provides superior stability and a spacious interior.
10x15 Meter
10x30 Meter
15X20 Meter
15X30 Meter
15X50 Meter
20X30 Meter
20X50 Meter
20X100 Meter
25X30 Meter
25X50 Meter
25X100 Meter
30X50 Meter
30x70 Meter
30X100 Meter
40X50 Meter
40X100 Meter
Futures About Arcum Tents
Distinctive Arcum Design
Arcum tents are unique in their arcum roof design. This combines both modern aesthetics with practicality.The smooth arcum roof not only improves the snow load performance of the roof, but also enhances its ability to resist wind and rain.
Convenient Installation
Our arcum tent is still based on the structural design of A frame tent, which is convenient in transportation and installation. The installation of this large clear span structure takes approximately 3 to 7 days and involves 8 to 15 installers. A large tent can be officially put into use. This ensures that customers can save a lot of management costs.
Modular Design
Constructed with lightweight yet durable materials like waterproof PVC and aluminum alloy, modular arcum tents prioritize portability without sacrificing durability. Advanced designs often incorporate weather-resistant coatings, ventilation panels, and insect-proof mesh, ensuring comfort in varied environments. The modular approach also enhances practicality: damaged sections can be replaced individually, reducing waste and extending the tent’s lifespan.
Flexible Customization
The A-frame tent adopts modular design, providing flexible expansion options. It can not only add or connect extension units as needed to increase space, but also freely adjust the width and height to accommodate large events or changing needs.
Arcum Tents Specification Parameter
| width span(m) | Eaves height(m) | Bay distance(m) | Length | Main Profile(mm) | Max Wind Load |
| 3~10 | 2.5 | 3 | Expands unlimitedly based on 3m | 84X48 | Up to 120 km/h |
| 6~10 | 3 | 3 | Expands unlimitedly based on 3m | 100X48 | |
| 10~30 | 4/6 | 5 | Expands unlimitedly based on 5m | 88X166/ 112X203/ 120X250/ 120X300 | |
| 30~70 | 4/6 | 5 | Expands unlimitedly based on 5m | 120X300/ 120X350/ 150X500 |
| Materials | 6061-T6 aluminum structure, anodized. Fenglu aluminum band |
| Q235 Steel Components,Hot dip galvanizing | |
| Color | Original Color/ White Coating/ Black Coating |
| Max Wind Load | 120 km/h |
| Max Snow Load | 0.5kN/sqm |
| Features | Sturdy Durable: reliable metal frames ensure stability and long-term uses |
| Easy Setup: prefabricated design for quick and easy installation | |
| Weather Prevention: It withstands high wind and snow loads |
| Materials | 850g PVC, mildew-proof, flame-retardant, UV-proof, full blackout |
| Available Options | 850g/㎡ Opaque PVC/ 950g/㎡ Clear PVC |
| Fabric color | The standard color is white. Other colors are optional |
| Light Transmittance | Full blackout / Half blackout / Full Transparency |
| UV-Coated | Yes |
| Waterproof | Yes |
| Fire Retardance | B1 |
| Accessories | Available Options |
| Walls | The standard configuration is 650g PVC. The optional walls are glass wall, ABS wall and sandwich panel wall |
| Solid Sidewall: Glass wall/ ABS wall/ Sandwich Panel/ Steel Cladding | |
| Door | Fabric Door: PVC Door with Zipper/ Rope |
| Solid Door: Aluminum Door(Single/Double Door)/ Glass Door(Single/Double Door) | |
| Special Options: Glass Sliding Door/ Rolling Door/ Clamshell Door | |
| Window & Vertilation | Glass Awning Window/ Glass Sliding Window/ Glass Double Casement Window/ Roll-up Window/ Extractor Fan |
| Flooring System | Standard Flooring System/ Stage Flooring System |
| Fixing Accessories | Expansion screws/steel stakes/Load-bearing plate |
Business Partner
Project Case Video
Playlist
Arcum Tent Application Scenario
The Arcum Event Tent is a premium outdoor shelter designed to elevate your events with its innovative arc-shaped design and exceptional functionality. Perfect for weddings, corporate gatherings, festivals, and more, this tent combines modern aesthetics with practical features to create a stunning and reliable venue.

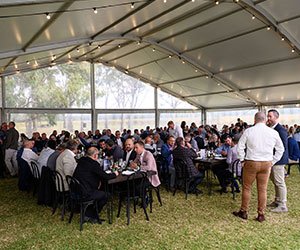

Company Activities

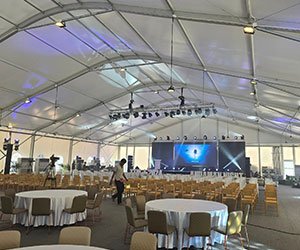

Social Gathering

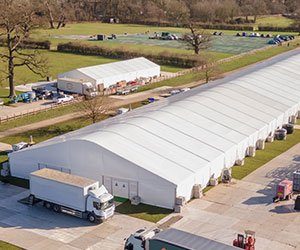

Industrial Warehouse

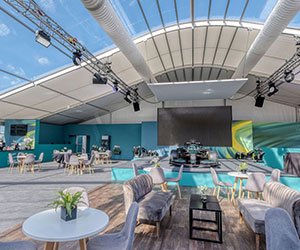

Private Party

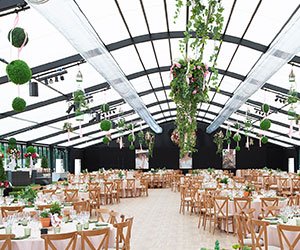

Wedding

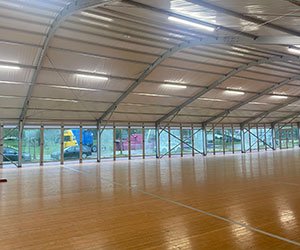

Sporting

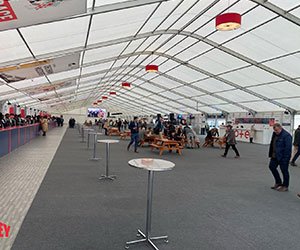

Exhibitions

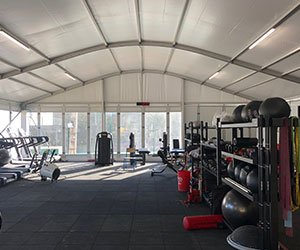

Gyms
Bozo has a team of project engineers with proven architectural skills who are ready to fully support your projects and activities.
When you are ready to start your next business, contact us today and our architects and engineers will provide you with a quote as quickly as possible.
Over 20 Years of Brand History
200+ Partners
100+ Country Shipments
1000+ Project Service Experience
Contact Us By
Email: pangantoni6866@gmail.com
Tel: +8615777444557
Whatsapp: +8615777444554
Address: No.3 Min’an Road, Dagang Town, Nansha District, Guangzhou City, Guangdong Province, China
Contact Us
FAQ
1. Is the arcum tent easy to install?
Curved structure tents are usually exquisitely designed. Although there are certain construction requirements, most products are equipped with detailed instructions and installation videos. As long as you follow the steps, 8-15 people can usually complete the construction, but the first time construction may take a little longer.
2. How is the windproof performance of arcum tent?
This type of tent adopts a special curved design, which can effectively disperse wind. Combined with high-strength expansion screws or steel stakes, X-steel pipes and high-quality tarpaulin, it can remain stable even in strong winds of 120km/h. However, in case of extreme weather, reinforcement measures still need to be taken.
3. How is the space utilized?
The internal space is open, there is no additional supporting structure blocking it, and there is a lot of usable space. Whether it is an industry exhibition hall of more than 40,000 square meters or a small outdoor event, it can provide a comfortable activity area.
