Polygonal Tents Expand The Traditional Use Space
The polygon tent is spacious, with a multi-curved roof to improve space utilisation,
making it ideal for applications such as goods storage
and hosting sporting events.
Polygon Tent Size Reference
Polygon tent span a range of 10-60 metres, and we’ve listed some examples of common span choices that we hope will help you find the right size.
10x15 Meter
10x20 Meter
10X30 Meter
15X20 Meter
15X30 Meter
15X50 Meter
20X30 Meter
20X50 Meter
20X100 Meter
25X30 Meter
25X50 Meter
25X100 Meter
30x50 Meter
30X100 Meter
40X50 Meter
40X100 Meter
Futures About Polygon Tent
Curved Design
The unique multi-curve design of the polygon tent makes it more elegant and beautiful. And the special geometrical shape allows the weight to be evenly distributed, dramatically increasing the tent's resistance to wind and various environmental factors, building a reliable space for outdoor activities that is both solid and beautiful.
Climate Adaptability
Our polygon tent are made from high-performance materials that can handle all weather conditions with ease. The durable PVC fabric is resistant to rain, sun and wind. UV protection protects against fading and ageing, and waterproofing ensures that the interior of the tent remains dry and comfortable.
Quick Build
As a large-span structure, our polygon tent are easy to transport and even quicker to erect. The prefabricated aluminium frames are lightweight and easy for experienced crews to handle, greatly reducing the time and effort required for assembly and completing the set-up efficiently.
Wide Range of Applications
Polygon tent can be used in a wide range of applications to meet the needs of all types of events. Whether it's a festival, a sporting event or a corporate event, it's the perfect fit. Its sturdy structure and long span design make it extremely spacious, allowing for easy storage of large quantities of goods and equipment.
Sturdy and Durable
The polygon clear span fabric building, with its robust construction, is ideal for long-term use. Commercial businesses can make full use of it as a showroom to expand their business or as a centre for customer outreach activities. The solid frame profile with waterproof vinyl fabric covering greatly enhances the durability of the tent.
Flexible Customisation Options
Our polygonal tents can be customised to your needs in terms of size and colour. In addition, these clear-span fabric constructions can be created with a wide range of accessories to create the perfect atmosphere you want. With ambient lighting and a choice of wall decorations, the space can be made unique and exclusive.
Polygon Tent Specification Parameter
| width span(m) | Eaves height(m) | Bay distance(m) | Length | Main Profile(mm) | Max Wind Load |
| 3~10 | 2.5 | 3 | Expands unlimitedly based on 3m | 84X48 | Up to 120 km/h |
| 6~10 | 3 | 3 | Expands unlimitedly based on 3m | 100X48 | |
| 10~30 | 4/5/6/7/8/10 | 5 | Expands unlimitedly based on 5m | 88X166/ 112X203/ 120X250/ 120X300 | |
| 30~70 | 4/5/6/7/8/10 | 5 | Expands unlimitedly based on 5m | 120X300/ 120X350/ 150X500 |
| Materials | 6061-T6 aluminum structure, anodized. Fenglu aluminum band |
| Q235 Steel Components,Hot dip galvanizing | |
| Color | Original Color/ White Coating/ Black Coating |
| Max Wind Load | 120 km/h |
| Max Snow Load | 0.5kN/sqm |
| Features | Sturdy Durable: reliable metal frames ensure stability and long-term uses |
| Easy Setup: prefabricated design for quick and easy installation | |
| Weather Prevention: It withstands high wind and snow loads |
| Materials | 850g PVC, mildew-proof, flame-retardant, UV-proof, full blackout |
| Available Options | 750g/㎡ PVC/ 950g/㎡ Clear PVC |
| Fabric color | The standard color is white. Other colors are optional |
| Light Transmittance | Full blackout / Half blackout / Full Transparency |
| UV-Coated | Yes |
| Waterproof | Yes |
| Fire Retardance | B1 |
| Accessories | Available Options |
| Walls | The standard configuration is 650g PVC. The optional walls are glass wall, ABS wall and sandwich panel wall |
| Solid Sidewall: Glass wall/ ABS wall/ Sandwich Panel/ Steel Cladding | |
| Door | Fabric Door: PVC Door with Zipper/ Rope |
| Solid Door: Aluminum Door(Single/Double Door)/ Glass Door(Single/Double Door) | |
| Special Options: Glass Sliding Door/ Rolling Door/ Clamshell Door | |
| Window & Vertilation | Glass Awning Window/ Glass Sliding Window/ Glass Double Casement Window/ Roll-up Window/ Extractor Fan |
| Flooring System | Standard Flooring System/ Stage Flooring System |
| Fixing Accessories | Expansion screws/steel stakes/Load-bearing plate |
Business Partner
Why Choose Polygon Tent From Bozotent?
High-Quality Frame Material
For the frame design of our polygonal tents, we use a high quality 6061-T6 aluminium alloy. Aluminium alloy is ideal for tent frames as it has high tensile strength and is lightweight, creating a structure that is both strong and lightweight. Thanks to this high quality frame material, the tent has a long life expectancy of approximately 25 years under normal conditions.
Provide Installation Instruction
Bozo Tent is equipped with a professional and experienced technical team to fully escort your tent installation. From the moment you order your tent, we will send you an exclusive installation video with clear content and detailed steps to help you understand the installation process at a glance. At the same time, our team members are always online to provide you with real-time installation guidance and follow up to ensure that the tent you order is set up quickly and smoothly.

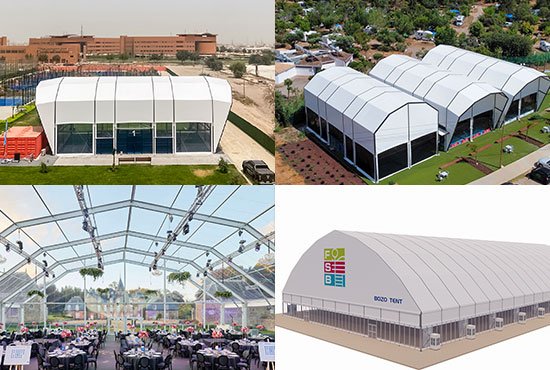

Customised Services
Our polygonal tents offer a wide variety of customisation options to meet your individual needs. In terms of coverings, you are free to choose materials of different weights according to actual usage scenarios and preferences, as well as a wide range of colours for you to choose from, in order to match perfectly with your surroundings. The walls and doors of the tent can also be customised to help you create your ideal style. In addition to this, a wide range of contoured fittings and finishes can be customised to your specifications. We are committed to providing a full range of options so that your every customisation need can be met.
Polygon Tent Show Video
Polypon Tent Application
The modular design of the polygonal tent makes it perform well in a variety of scenarios, widely used in concerts, sports events (such as venues and stadiums set up), exhibitions, warehousing and logistics, large-scale events and gatherings, trade expositions and other fields, and can be flexibly adapted to the space needs of different scales.

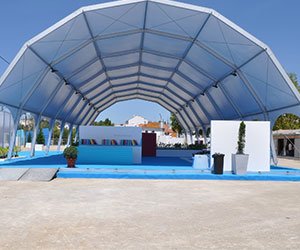

Events

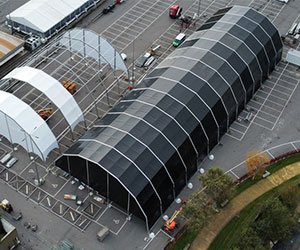

Commercial Exhibitions

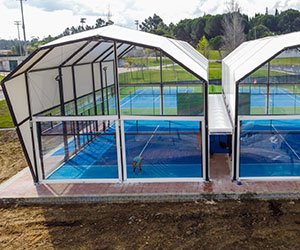

Sports Events

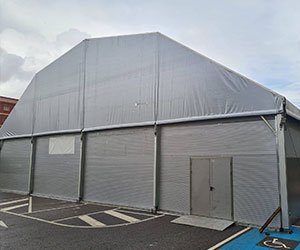

Industrial Warehousing

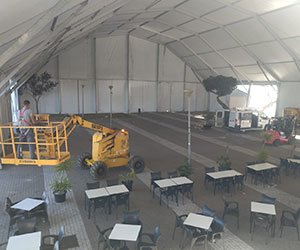

Rescue Shelter

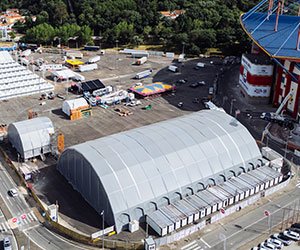

Art Exhibitions

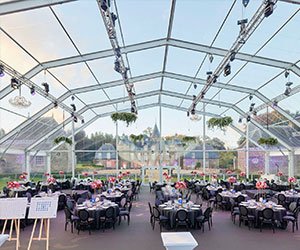

Wedding

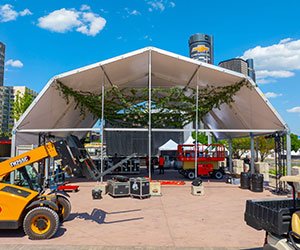

Social Gatherings
Bozo has a team of project engineers with proven architectural skills who are ready to fully support your projects and activities.
When you are ready to start your next business, contact us today and our architects and engineers will provide you with a quote as quickly as possible.
Over 20 Years of Brand History
200+ Partners
100+ Country Shipments
1000+ Project Service Experience
Contact Us By
Email: pangantoni6866@gmail.com
Tel: +8615777444557
Whatsapp: +8615777444554
Address: No.3 Min’an Road, Dagang Town, Nansha District, Guangzhou City, Guangdong Province, China
Contact Us
FAQ
1. What is a Polygon Tent?
Polygon tent is a multi-rafter structure design based on the rafter structure of A-frame tent. It is designed for stability and spaciousness. Its geometric structure is wind-resistant, evenly distributes weight, and optimizes the interior space, making it an ideal choice for paddle courts, exhibition halls, industrial warehouses and hangars.
2. How to install a Polygon Tent?
Installation a Polygon Tent involves:
① Measure the dimensions of the building site based on the drawings and anchor the tent base plate;
② Assemble the aluminum alloy frame, including columns, rafters and purlins;
③ Lift the aluminum frame using a forklift, fork pole or lifting equipment;
④ Installing the roof fabric and wall fabric.
The installation difficulty and installation time of different sizes are different. Bozo Tent will provide installation videos and guidance drawings after the goods leave the factory. If the buyer needs to provide on-site technical guidance, we can arrange 1 to 2 engineers to the buyer’s construction site to guide the installation.
3. What materials are polygonal tents
generally made of?
Most heavy-duty polygonal tents have canopies made of high-quality waterproof PVC fabric. The tent frame is usually made of lightweight but durable materials, such as 6061-T6 aluminum alloy, which can provide strength while reducing the weight of the tent. Therefore, polygonal tents have a faster installation time than traditional steel structure tents, and require fewer installation workers, which can help buyers save a lot of on-site management costs.
4. How to clean and maintain a polygon tent?
The polygon tent uses PVC fabric with self-cleaning ability. Its life span is 5 to 8 years. Usually it does not need to be cleaned frequently, about once every three years. The polygon tent uses a modular structure design and is easy to install and disassemble. So its fabric is easy to disassemble and clean, and it can be cleaned in about one to two days.
